New Cube dialog for scheduling

The dialog is displayed when you click the OK button in the New Cube dialog for selecting business view. It helps you to define the updating policy of the in-memory cube created based on the selected business view.

This dialog contains the tabs listed below. Set the settings in each tab according to your requirements.

• General tab
• Schedule tab
• Settings tab
• Notification tab

Back

Goes back to the previous tab.

Next

Goes to the next tab.

Finish

Applies the settings.

Cancel

Cancels any settings and returns to the New Cube dialog for selecting business view.

Help

Displays the help document about this feature.

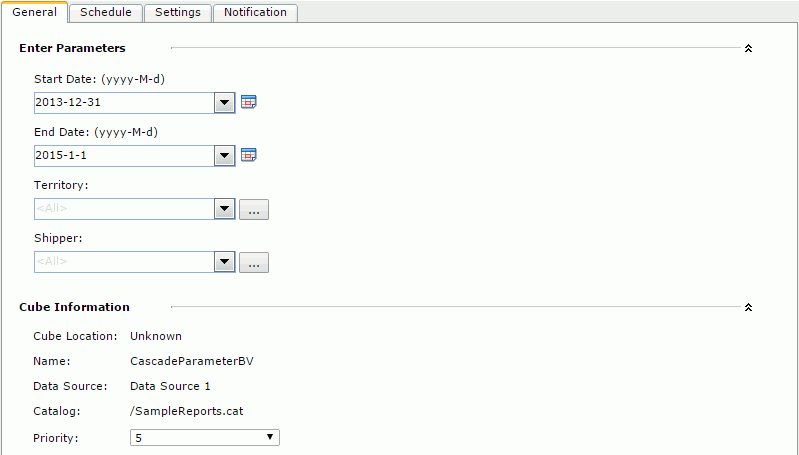

General tab

Before you can schedule a cube task, you first need to configure the settings in this tab. See the tab.

Enter Parameters

Specifies values of the parameters applied in the selected business view. If the business view does not have parameters, "No Parameter Needed" will be displayed here.

You may specify parameter values in these ways.

Cube Information

Specifies the in-memory cube information.

Cube Location

Shows the location of the cube. It is "Unknown" if it is the first time you schedule a task for the business view.

Name

Shows the name of the business view. It is also used as the name of the new cube.

Data Source

Shows the data source name.

Catalog

Shows the catalog name.

Priority

Specifies a priority level to the scheduled task. The priority levels are from 1 to 10 in ascending order of lowest priority to highest priority. By default this property is ignored unless server.properties is modified to set queue.policy not equal to 0.

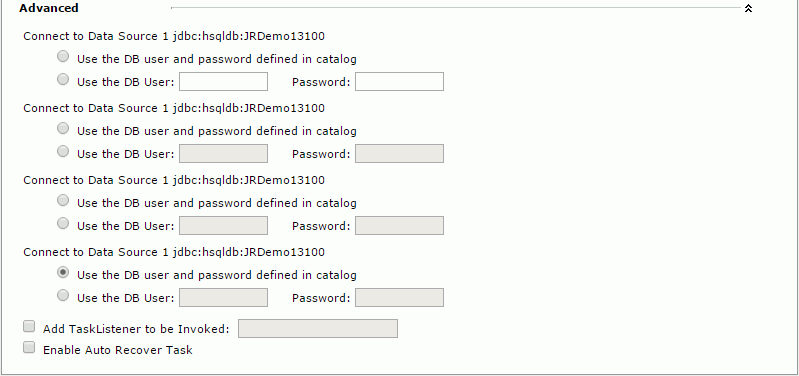

Advanced

Configures some advanced settings.

Connect to [Data Source Name]

Specifies the DB user and password with which you want to connect to the data source.

• Use the DB user and password defined in catalog
  If checked, the DB user and password defined in the catalog will be used.
• Use the DB User
  If checked, specify another DB user and password instead of the one defined in the catalog.

Add TaskListener to be Invoked

Enables you to call the Java application before/after viewing or when scheduling the task.

Enable Auto Recover Task

Specifies to enable the task to be auto recovered.

• Maximum Retry Times
  Specifies the maximum number of times in which to retry running the task in order to recover it.
• Retry Interval
  Specifies the interval between retries.
• Recreate All Results
  Specifies whether to recreate all results or just the failed results.

Schedule tab

The Conditions tab allows you to specify the conditions for the task. It contains the following two sub tabs:

• Time tab
• Trigger tab

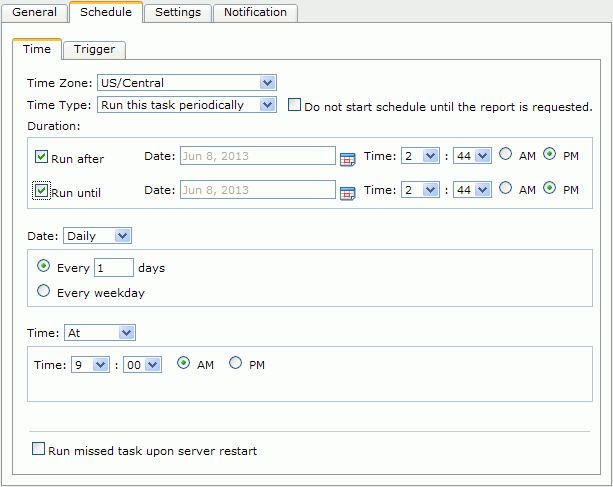

Time tab

The Time tab allows you to set settings for specifying the time for when a task is to be performed. See the tab.

Time Zone

Specifies the time zone.

Time Type

Specifies the time type of the task.

• Run this task immediately
  Performs the task as soon as you submit it.
• Run this task at
  Specifies the time for when the task is to be performed once.
  • Date
    Specifies the date for when the task will be run. You can specify the date by clicking the calendar button .
  • Time
    Specifies the time for when the task will be run.
  • Run missed task upon Server restart
    Specifies to run missed tasks when you restart the server.
• Run this task periodically
  Specifies the time for when the task is to be performed on a repeated basis.
  • Do not start schedule until the report is requested
    This option is used to freeze the way of automatically performing the schedule and change it to the schedule being fired upon certain condition.

    If the option is not checked, the schedule will be performed automatically according to the time condition.

    If the option is checked, the schedule will be fired only upon the first report running request based on the business view after each scheduled time.

  • Duration

    • Run after
      Specifies the start date and time of the period during which the task is to be performed on a repeated basis.
    • Run until
      Specifies the end date and time of the period during which the task is to be performed on a repeated basis.
  • Date
    Specifies the date for when a task is to be performed.

    • Daily
      Performs the task every one day, two days, etc., or every weekday (from Monday to Friday).
    • Weekly
      Performs the task every one week, two weeks, etc., and on Sunday, Monday, Tuesday, etc.
    • Monthly
      Performs the task on the first day, second day, etc. of every one month, two months, etc., or on the first Sunday, Monday, etc. of every one month, two months, etc.
  • Time
    Specifies the exact time for when a task is to be performed on a selected day.
    • At
      Specifies a specific time for when to perform a task on a selected day.
    • Hourly
      Performs the task every one hour, two hours, etc., at a certain minute on a selected day.
    • Minutely
      Performs the task every one minute, two minutes, etc.
  • Run missed task upon server restart
    Specifies to run missed tasks when you restart the server.

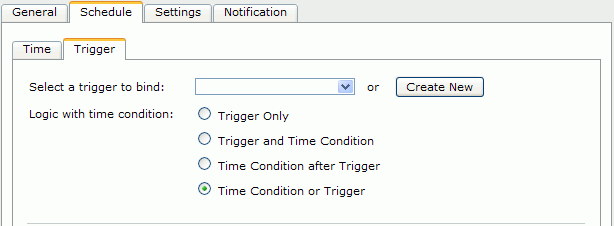

Trigger tab

The Trigger tab allows you to set settings for specifying a trigger for the task. See the tab.

Select a trigger to bind

Specifies the trigger from the drop-down list for the task.

Create New

Creates a new trigger.

• Trigger Name
  Specifies the name of the trigger.
• Conflict Check
  Checks if the name has been used for another trigger.
• Description
  Specifies the description of the trigger (if required).
• OK
  Creates the trigger with the specified information.
• Cancel
  Cancels the trigger creating process.

Logic with time condition

Specifies the logic between time condition and trigger condition.

• Trigger Only
  Performs the task only when the trigger fires.
• Trigger and Time Condition
  Performs the task when both time condition and trigger condition are ready.

  Notes:

  • No matter which condition is ready, the task can only be performed when its counterpart is ready.
  • If you specify the task to be performed at a specific time, you must check the checkbox Run missed task upon Server restart, otherwise the task will be regarded as expired and will be deleted when the time condition is ready before the trigger condition.
• Time Condition after Trigger
  Performs a task when both the time condition and the trigger condition are ready. The trigger condition must be ready before the time condition. If the time condition is ready before the trigger condition, the task will be regarded as expired and will be deleted.
• Time Condition or Trigger
  Performs the task when either the time condition or the trigger condition is ready.

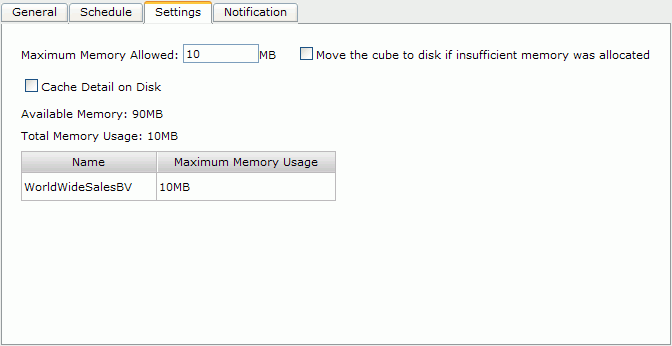

Settings tab

The Settings tab allows you to configure the location and size of the cube. See the tab.

Maximum Memory Allowed

Specifies the maximum memory for the cube to use. Each cube has this setting. The total of all cubes' maximum memory allowed should be no more than the maximum cube memory allowed.

The value must be provided, otherwise you are not allowed to continue with the other tabs or to finish the dialog. The value should be no more than the available memory.

Move the cube to disk if insufficient memory was allocated

When the option is selected, the cube will be cached on disk when the specified memory size is not enough to hold it.

If the option is selected, when initiating or updating an in-memory cube, if the memory requirement is bigger than the cube's maximum memory allowed, or if all in-memory cubes' memory usage will be bigger than the maximum cube memory allowed, the cube will be swapped to disk, otherwise if this option is unselected, the cube status will be set to disabled.

Cache Detail on Disk

When the option is selected, the aggregation data in the business view will be cached into memory and the detail data will be cached on disk.

When the option is unselected, only the aggregation data in the business view will be cached into memory.

Available Memory

Shows the memory that can be used to run the cube. The value equals the maximum cube memory allowed for all cubes minus the total memory usage.

Total Memory Usage

Shows the total maximum memory allowed for all in-memory cubes which are not in the Disabled status.

Memory usage table

Lists the memory usage of all the other cubes excluding the current.

• Name
  The name of the cube.
• Maximum Memory Usage
  The maximum memory allowed for the cube.

Notification tab

The Notification tab allows you to notify someone by e-mail when a task has finished running, regardless of whether it was successful or unsuccessful. See the tab.

When task is successful

Specifies to send an e-mail when the task is successful.

When task fails

Specifies to send an e-mail when the task is unsuccessful.

To

Specifies the address you want to send the e-mail to.

Cc

Specifies the address you want to copy to.

Bcc

Specifies the address you want to secretly copy to.

Subject

Specifies the subject of the e-mail.

Comments

Specifies the contents of the mail or comments to the contents.

Related topics:

• Creating in-memory cubes
