Customize Waiting Page dialog

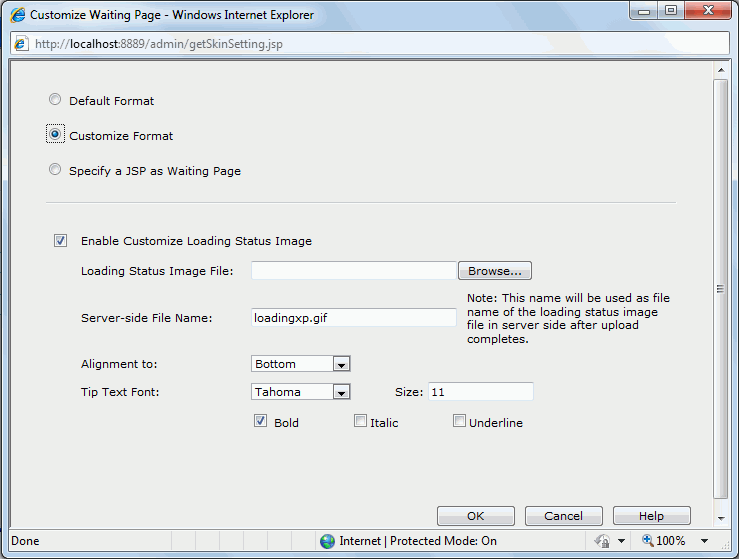

This dialog appears when you click the Customize button in the Profile > Customize Server Preferences > Advanced tab on the JReport Administration page. It helps you to customize the waiting screen according to your requirements. See the dialog.

Default Format

Applies the default format provided by JReport.

Customize Format

Allows to customize loading status image and tip text font.

Enable Customize Loading Status Image
Allows to upload a local image to Server as the loading status image appearing in waiting pages.
- Loading Status Image File
  Uploads an image from the local disk. These types of images are supported: GIF, JPG, BMP, and PNG.
- Server-side File Name
  This name will be used as the name of the image file after it is uploaded to server.
- Alignment to
  Specifies the relative position of the image as compared to tip text in waiting pages.
Tip Text Font
Specifies font face and size and style of tip text in the waiting pages.

Specify a JSP as Waiting Page

Allows customized JSP files to implement the waiting pages.

JSP File
Uploads a JSP from the local disk. Note that the required JSP file is not exactly a complete JSP but a segment. Its body can contain only one root <div></div> tags and the non-body section can contain only tags that are allowed in the <body></body> tags.

The following is a sample:

<div>
    <table  border="0" cellspacing="0" cellpadding="0" align="center">
        <tr>
            <td valign="middle" align="center">
                <table cellpadding="5" cellspacing="0" border="0">
                    <tr>
                        <td>
                            <font
                                style="font-size:12px;font-family:Verdana;">
                                waiting....processing
                            </font>
                        </td>
                    </tr>
                    <tr>
                        <td>
                            <img src="../images/loadingdefault.gif" />
                        </td>
                    </tr>
                </table>
            </td>
        </tr>
    </table>
</div>

File Name
This name will be used as the name of the JSP file after it is uploaded to server.

Applies the changes and closes the dialog.

Cancel

Does not retain any changes and closes the dialog.

Help

Displays the help document about this feature.
