The dialog helps you to modify the definition of a chart. It contains the following tabs:
OK
Applies the settings and closes the dialog.
Cancel
Cancels the settings and closes the dialog.
Help
Displays the help document about this feature.

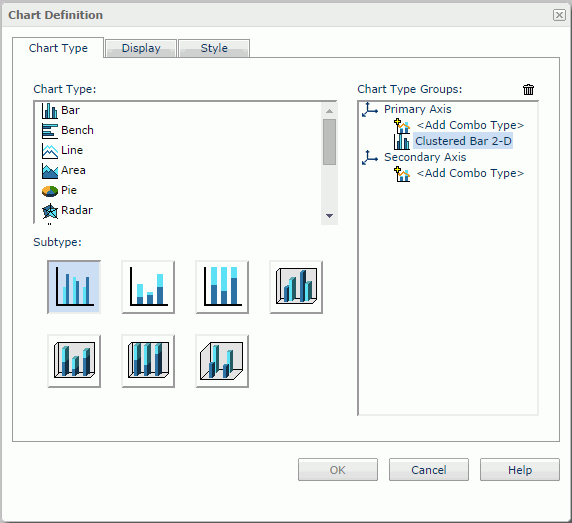

This tab allows you to set the type of the chart. See the tab.
Chart Type
Lists all the chart types.
Subtype
Shows subtypes of the selected chart type in thumbnail form.
Chart Type Groups
Lists the subtypes defined for the chart.
To replace a chart type with another one, first select it, then select the wanted chart type and a sub type.
If you want to create a combo chart, click <Add Combo Type> of Primary Axis or Secondary Axis in the Chart Type Groups box, and an additional subtype will be added. To replace the additional subtype, select it, then specify the required type and subtype respectively. To add more subtypes, repeat the procedures.
Removes the selected subtype. At least one type should remains for the Primary Axis so as to create the chart.
This tab allows you to set the fields that will be displayed in the chart. See the tab.
Resources
Displays all the dimension objects and measure objects used in the chart.
Adds the selected cube element to the chart.
Removes the selected cube element.
Category
Lists the dimension object
that will be displayed on the category axis of the chart.
Series
Lists the dimension object that will be displayed on the series axis of the chart.
Show Values
Lists the measure objects
and additional values
that will be displayed on the value axis of the chart.
Opens the Edit Additional Value dialog to edit an additional value. Available only when an additional value is selected in the Show Values box.
Order/Select N
Opens the Order/Select N dialog to define the sort order and Select N condition in the chart.
This tab allows you to select a style for the chart. It is hidden when there is only one style available. See the tab.
Style
Lists the available styles.
Preview
Displays a diagram illustrating the effect of the selected style on the chart.
